Brand: Giada Technology Inc.

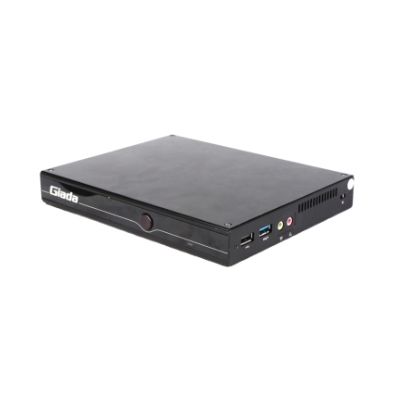

i59U, i5-6200U, 2.5" SATA + mSATA + M.2
In stock
SKU:
i59U
Skylake main-stream signage player, Intel 6th generation core processor
End of Life
Enquire Now
Enquire Now
Skylake main-stream signage player, Intel 6th generation core processor
· Intel 6th generation core processor
· 1 x SO-DIMM DDR3L,Up to 32GB
· 1 x DP,1 x HDMI, Supporting 4K Display
· 1 x 2.5” SATA, 1 x mSATA, 1 x M.2, 1 x TF Card
· 1 x USB 3.0 Type-C, 2 x USB3.0, 2 x USB2.0, 1 x RS232
· 2 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G, 1 x SIM Slot
· Supports Intel vPro Technology (Optional)
| i59U-B3000 | i59U-B5000 | ||
| Processor | CPU | Intel®Core™ i3-6100U | Intel®Core™ i5-6200U |
| Frequency | 2.30GHz (Up to 2.80GHz) | 2.30GHz (Up to 2.80GHz) | |
| BIOS | AMI Source Code | ||
| Chipset | SOC | ||
| Memory | Type | DDR3L-1600MHz | |
| Socket | 2 x SO-DIMM | ||
| Max Size | 32GB | ||
| Graphics | GPU | Intel® HD Graphics 520 | |
| Graphic Engine | Direct3D 2015, OpenGL 4.5, OpenCL 2.1 | ||
| DP | 1 x DP (Max.4096 x 2304 @60Hz) | ||
| HDMI | 1 x HDMI (Max.3840x2160 @30Hz) | ||
| Network | Controller | Intel® I219LM Gigabit Ethernet | |
| Interface | 1 x RJ45 | ||
| I/O | USB | 1 x USB 3.0 Type-C,2 x USB 3.0,2 x USB 2.0 | |
| Serial Port | 1 x RS232 | ||
| Audio | 1 x MIC-IN，1 x AUDIO-OUT&SPDIF | ||
| Mini-PCIe 1# | 1 x Full-size Mini-PCIe for mSATA | ||
| Mini-PCIe 2# | 1 x Full-size Mini-PCIe for WiFi/BT/3G/4G | ||
| M.2(2230) | 1 x M.2(2242/2280) for SSD | ||
| SIM | 1 x SIM Slot | ||
| Storage | SATA | 1 x 2.5"SATA | |
| mSATA | 1 x Full-size mSATA | ||
| M.2 | 1 x M.2 | ||
| TF Card | 1 x TF Card Reader | ||
| JAHC Tech | WatchDog Timer | 0~255 Second Time Out Support | |
| Auto Power On | Power Activated Automatically Start | ||
| Remote Control | By IR Controller for Power On | ||
| RTC | Set Up Independently Every day, A Week as a Cycle | ||
| Operation System | Windows | Windows 7/8.1/10（64-Bit） | |
| Linux | Supported | ||
| Power | Power Type | DC-IN | |
| Input Voltage | 19V / 3.42A | ||
| Mechanical | Dimensions (W × D × H) | 189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"） | |
| Construction | Metal | ||
| Mounting | Desk/Wall Mounting and VESA Mounting Kit (JZ183) | ||
| Color | Black | ||
| Environment | Operating Temperature | 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow | |
| Relative Humidity | 95%@40℃ (non-condensing) | ||
| Certification | Certification | CE, FCC Class B, CCC | |
