Brand: Avalue Technology Inc.

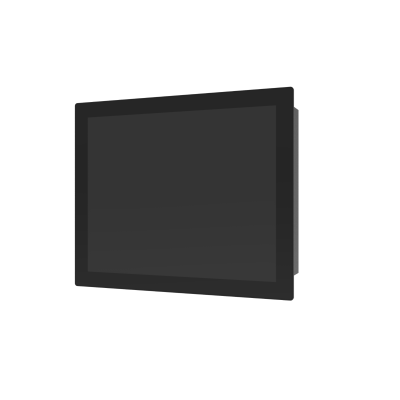

FPC-1736 17" 8th/9th Gen CPU Rugged Multi-touch Panel PC
In stock
SKU:
FPC-1736-X0000-1R
17" 8th/9th Gen Intel Generation Core Pentium i7/ i5/ i3 Processors Full-falt Rugged Multi-touch Panel PC With Active Cooling and Expansion Slot
Key Features:
- Intel LGA1151 Socket Supports 8th /9th refresh Generation Core™ Pentium /i7/ i5/ i3 Processors (Max. TDP at 65W)
- 2 x Memory Socket, Max. Up to 64GB DDR4 2133/2400/2666 MHz
- 4 x USB3.0, 1 x USB2.0（Internal for dongle）
- 3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
- 1 x Storage, 2.5” Drive Bay, 1 x M.2 SSD
- 1 x M.2 Key-E for Wi-Fi, Bluetooth
- Support 1 x PCIex4 Expansion Slot (option for 2 x PCI slot)
- Wide Voltage DC input +12V ~ +24V
- Front IP65, Panel Mounting Kits
- CE, FCC Class A, CCC
Enquire Now
Enquire Now
FPC-1736 is an industrial panel PC with 17" SXGA LCD, powered by Intel H310 chipset, support for 8th/9th Gen Intel refresh Generation Core Pentium /i7/ i5/ i3 processors. With die-casting front bezel and rear metal aesthetic enclosure, to ensure reliability and easy maintenance in diverse industrial applications. Moreover, it provides a faster and more flexible connection via 1 x 2.5G, 1 x Gigabit Ethernet port, 4 x USB 3.0 and a unique design internal USB2.0 type A connector for the USB dongle (for encryption key) inside the enclosure. FPC-1736 is ideal for MES, processing and general industrial equipment integration.
Key Features:
- Intel LGA1151 Socket Supports 8th /9th refresh Generation Core™ Pentium /i7/ i5/ i3 Processors (Max. TDP at 65W)
- 2 x Memory Socket, Max. Up to 64GB DDR4 2133/2400/2666 MHz
- 4 x USB3.0, 1 x USB2.0（Internal for dongle）
- 3 x RS232, 2 x LAN,1 x HDMI 1.4b, 1 x VGA
- 1 x Storage, 2.5” Drive Bay, 1 x M.2 SSD
- 1 x M.2 Key-E for Wi-Fi, Bluetooth
- Support 1 x PCIex4 Expansion Slot (option for 2 x PCI slot)
- Wide Voltage DC input +12V ~ +24V
- Front IP65, Panel Mounting Kits
- CE, FCC Class A, CCC
| -System Information- | |
| Processor | Intel® LGA1151 Socket Supports 8th /9th refresh Generation Core™ Pentium® /i7/ i5/ i3 Processors (Max. TDP at 65W) |
| Platform Controller Hub | Intel® H310 Express Chipset |
| System Memory | 2 x 260-pin DDR4 2666 MHz SO-DIMM socket, supports up to 64GB Max |
| I/O Chipset | ITE8786E |
| BIOS Information | AMI uEFI BIOS, 128Mbit SPI Flash ROM |
| Board | EMX-H3102C |
| Expansion | |
| Expansion | 1 x M.2 E-Key, support Wi-Fi module (optional) 1 x PCIex4 slot (Option for 2 x PCI slot) |
| Storage | |
| Storage | 1 x SATA III for SSD expansion 1 x M.2 B-key 2242 slot support SATA |
| Panel | |
| LCD Size | 17"，4:3 |
| Display Type | SXGA |
| B/L Inverter/Converter | External |
| Resolution | 1280 x 1024 |
| Pixel pitch | 0.264(H) x 0.264(V)mm |
| Luminance | 250 nits |
| Contrast ratio | 1000 |
| Viewing angle | 80 (U), 80 (D), 85 (L), 85 (R) |
| Response time | 5ms |
| Backlight | LED |
| Touch Screen | 17" PCAP Multi-Touch support up to 10 points |
| Touch Light Transmission | 89 % |
| Touch Controller | ILLITEK ICI2510P |
| I/O | |
| USB Port | 4 x USB3.0, 1 x USB2.0（Internal Type A for dongle） 4 x USB2.0（Option） |
| COM Port | 3 x RS232，1 x RS232（Option） |
| GPIO | 8 bit GPIO (option) |
| Antenna | Reserved for WIFI6 2.4GHz~7.1GHz Antenna |
| SATA | 1 x SATA III |
| PCIe | 1 x PCI-ex4 (Option for 2 x PCI slot by module) |
| Wireless Communication | |
| WLAN | IEEE802.11 ax/ac/a/b/g/n 2.4 GHz，5GHz，6GHz （Option） |
| Bluetooth | BT5.2 （Option） |
| Display | |
| Graphic Chipset | Intel® 8/9th Generation CPU integrated |
| Spec. & Resolution | 1 x VGA: 2048 x1536 @ 50 Hz 1 x HDMI 1.4b: 4096x2160@30Hz |
| Audio | |
| Audio Interface | 1 x Line-out, 1 x Mic-in |
| Speaker Output | 2 x 5W |
| 支持软件 | |
| OS | Windows 10 64bits Linux (Ubuntu 22.04) |
| Certifications | |
| Certification Information | CE/FCC Class A CCC |
| Ethernet | |
| LAN Chipset | 1 x Intel i219-V Gigabit Ethernet 1 x Intel i225-V 2.5 Gigabit Ethernet |
| LAN Port | 2 x RJ-45 |
| Power Requirement | |
| DC Input | +12~24V DC in |
| DC Input Connector | DC in Phoenix terminal (option) *Only connect one of them for power input |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 120W (24V @ 5A ) AC-DC Power adapter |
| Mechanical & Environmental | |
| Operating Temperature | 0 ~ 45°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 392.72 x 325.32 x 121.55 mm |
| Weight | 7.5 Kg |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis |
| Shock Test | With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| IP Rating | Font IP65 |
| VESA | Wall / Stand / VESA , 100mm x 100mm |
| System Fan | 2 x 12V |
| Construction - Front | Die-casting |
| Construction - Rear | Metal |
| Drop | ISTA 2A, IEC-60068-2-32 Test:Ed |
| Ordering Information | |
| Ordering Information | FPC-1736-X0000-1R 17" 1280x1024 250nits Industrial Touch Panel PC, ErP Design, PCAP Multi Touch(ALC897) Intel w/H310/2LAN/4USB3/HDMI/VGA/DCin/Line out/Mic in/Barebone/120W Power adapter w/PCIex4 expansion slot ACC-CPU-8700TR Intel Core i7-8700T 2.4GHz Processor ACC-CPU-8500TR Intel Core i5-8500T 2.1GHz Processor ACC-CPU-8100TR Intel Core i3-8100T 3.1GHz Processor C971XFP1736000R Double USB KIT For FPC-1736 C971XFP1736001R Single USB KIT For FPC-1736 C971XFP1736002R Internal Single USB KIT For FPC-1736 C971XFP1736003R 4Terminal Block DC IN KIT For FPC-1736 C971XFP1736004R Terminal Block GPIO KIT For FPC-1736 C971XFP1736005R WiFi module KIT for FPC-1736 Intel AX210 C971XFP1736006R Riser card KIT For FPC-1736 PCIex1 to 2PCI Riser Card C971XFP1736007R WiFi module KIT for FPC-1736 IntelAC8265 C971XFP1736008R WiFi module KIT for FPC-1736 IntelAC9260 C971XFP1736008R CPU cooler 4P/12V/Fan/84*84*28/AL/65W C971XFP1736008R CPU Cooler for LGA1155 Package 4-Pin/12V C170P060040R US Power Cord SM001/3P+SM006/3P 1.83M C170P060050R EU Power Cord SH005/3P+SH006/3P 1.83M C170P060060R JP Power Cord SH001/3P+SH006/3P 1.83M C170P060070R UK Power Cord YP61A/3P+YC12/3P 1.83M C170P060080R AU Power Cord SH051/3P+SH006/3P 1.83M |
