Brand: IEI Integration Corp.

DRPC-140-EHL Fanless DIN-Rail Embedded Computer

In stock
SKU:
DRPC-140-EHL-JC-R10

Fanless DIN-Rail Embedded System

Key Features:

  • Fanless system

  • Intel Celeron J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)

  • Four RS232/422/485 Serial port

  • Two isolation CAN Bus interface

  • CE/FCC compliant

Enquire Now
Enquire Now

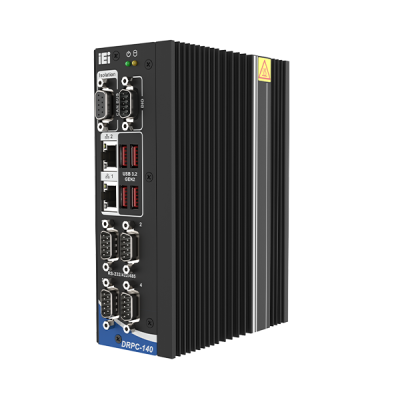

main product photo
We build to order

The IEI DRPC-140-EHL is a compact, fanless embedded system designed for industrial automation, smart factory, and IoT applications. Powered by Intel® Elkhart Lake processors, it delivers enhanced computing performance with low power consumption. This robust system features multiple I/O ports, including dual GbE LAN, USB 3.2, and RS-232/422/485, making it versatile for various industrial tasks. The DRPC-140-EHL supports dual-display outputs via HDMI and DisplayPort, ensuring clear and detailed visuals. With its rugged design and wide operating temperature range, this system is built to perform reliably in harsh environments.




This product is listed in Embedded Computers, IEI Integration Corp.
Specifications

Form factor

SBC Form Factor

  •  Supported CPU:

    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)

  •  Chipset: SoC

  •  System Memory:

    1 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 32GB)

  •  Power:

    3-pin terminal block: 12-24V DC

    Consumption: 12V@3.36 (Intel® Celeron® J6412 with 8GB DDR4 Memory)

I/O Interface

I/O Ports

  •  USB:

    4 x USB 3.2 Gen2

  •  Ethernet:

    2 x 2.5 GbE by Intel® I225-V/I226-V controller

  •  Display:

    2 x HDMI™ (up to 4K@30Hz)

  •  COM Port:

    4 x RS-232/422/485 (DB-9)

  •  Digital I/O:

    8-bit Digital I/O (4-in/ 4-out)

  •  CAN BUS:

    2 x CAN-bus (DB9 with 2.5kV isolation)

  •  Wireless:

    1 x 802.11a/b/g/n/ac (optional)

  •  TPM:

    1 x TPM (2 x10 pin)

    Intel PTT

  •  Watchdog Timer:

    Programmable 1 ~ 255 sec/min

Expansion Slots

Expansion Slots

  •  M.2:

    1 x M.2 A Key 2230 (PCIe Gen3 x1/USB 2.0)

    1 x M.2 M Key 2280 (PCIe Gen3 x2)

System

Cooling method / System Fan

Fanless

Drive Bays

eMMC 5.1 (Optional) (MOQ, please contact with sales account manager)

Indicator&Buttons

Buttons

1 x Power Button

1 x Reset Button

1 x AT/ATX Switch

Indicators

1 x LED for Power

1 x LED for HDD

Physical Characteristics

Construction

Extruded aluminum alloy

Color

Color

Black

Dimensions

Dimensions

58.75 x 130 x 174 (mm)

Weight

Weight

Net: 1.39kg / Gross: 1.68 kg

Environment

Operating Temperature

-20°C ~ 60°C with 0.7M/S air flow (M.2)

Humidity

10% ~ 95% non-condensing

Operating Vibration

MIL-STD-810G 514.6C-1 (SSD)

Operating Shock

Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)

Safety & EMC

CE, FCC, UKCA

OS Support

OS Support

Microsoft® Windows® 10/11, Linux
