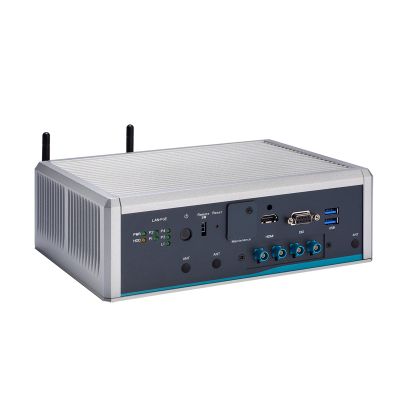

AIE900-XNX Fanless Edge AI System NVIDIA Jetson Xavier NX PoE
NVIDIA Jetson Xavier NX, 1 HDMI, 1 GbE LAN, 4 GbE PoE, 8-CH DI/DO, and 2 COM/CAN for 5G and AMR Applications
Key Features:
- NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
- Advanced edge AI platform for AMR, AGV, and computer vision
- Wide power input ranges from 9 to 36 VDC (ignition power control for option)
- Supports four GbE PoE for GigE camera and LiDAR connectivity
- Wide operating temperature range from -30°C to +60°C
- One M.2 Key B slot for 5G
- One 8-CH DI/DO and two DB9 for RS-232/422/485/CAN ports
The AIE900-XNX has a powerful and effective 384-core NVIDIA Volta architecture GPU and 6-core NVIDIA Carmel ARM v8.2 (64-bit) processor that together provide up to 21 TOPS accelerated computing performance for running contemporary AI workloads. The advanced edge AI computing platform has one M.2 Key B slot for the 5G module to address the emerging demands for faster throughput, lower latency, and a higher density of connections. Additionally, it has one SIM slot for Wi-Fi, LTE, Bluetooth, and GPS, as well as one full-size PCIe Mini Card slot. Given the high-temperature operation and different voltage input requirements for use in sedans, buses, and trucks, it has an extended operating temperature range of -30°C to +60°C and 9 to 36 VDC power input with an optional ignition power control.
Key Features:
- NVIDIA Jetson Xavier NX with Volta GPU architecture with 384 NVIDIA CUDA cores
- Advanced edge AI platform for AMR, AGV, and computer vision
- Wide power input ranges from 9 to 36 VDC (ignition power control for option)
- Supports four GbE PoE for GigE camera and LiDAR connectivity
- Wide operating temperature range from -30°C to +60°C
- One M.2 Key B slot for 5G
- One 8-CH DI/DO and two DB9 for RS-232/422/485/CAN ports
| CPU Board |
|
| CPU |
|
| GPU |
|
| Chipset |
|
| System Memory |
|
| COM |
|
| USB |
|
| Ethernet |
|
| Display |
|
| Digital I/O |
|
| Audio |
|
| Storage |
|
| Expansion |
|
| Others |
|
| Power Supply |
|
| Watchdog Timer |
|
| Construction |
|
| Operating Temperature |
|
| Relative Humidity |
|
| Vibration |
|
| Dimensions (W x D x H) |
|
| Weight (net/gross) |
|
| Certifications |
|
| EOS Support |
|
| Mounting |
|
